好久好久没写过文章了,一是最近项目太忙了,没时间写。二是也没有时间学习新的东西,想写点什么却又无从下笔。一味的去写这个API怎么用,那个新技术怎么用,又显的没意思。没有项目经验总结的技术知识讲解,总感觉有些苍白。
最近在做混合App开发这块,从开始的ionic 框架,到后来的mui框架,让我在混合开发这块有了更深的理解,如果在这块要写点什么无非漫天盖地的这个指令怎么用,那个模版怎么用,数据怎么进行双向绑定,等等,但是这些网上已经很多资料了,等不太忙了,我想我会总结一篇这些框架的使用心得吧。但是我今天不讲这个,我们来谈一谈在原生app中(iOS android)如何使用动态路由机制来搭建整个app的框架。
路由机制在web开发中是比较常见的,app开发中还是很少听到这种概念的,目前有些大公司采用的组件化开发(手淘,携程,蘑菇街等),倒是跟我们讲的有很多相同之处,不过它们的比较复杂,而且网上很多组件化开发,路由机制,没有一个能给出完整代码示例的,看着让人云里雾里的。索性自己就借鉴它们的思想,加上一点个人的理解,搞出了一个简单实用的可行性demo出来。我们主要介绍以下三方面内容:
1 什么是动态路由
2 它能解决我们什么问题
3 如何在项目中实现
一 什么是动态路由
原生开发没这概念,我们借助angular路由机制来解释这一概念,所谓路由,就是一套路径跳转机制,事先通过配置文件定义好一个路径映射文件,跳转时根据key去找到具体页面,当然angular会做一些缓存,页面栈的管理等等一些操作,它大致的定义是这样的
angular.module('app',[])
.config('$routeProvider',function ($routeProvider) {
$routeProvider
.when('/',{
templateUrl:'view/home.html',
controller:'homeCtrl'
}
)
.when('/',{
templateUrl:'view/home.html',
controller:'homeCtrl'
}
)
.when('/',{
templateUrl:'view/home.html',
controller:'homeCtrl'
}
)
.ontherwise({
redirective:'/'
})
})
config函数是一个配置函数。在使用
$routeProvider这样的一个服务。when:代表当你访问这个“/”根目录的时候 去访问 templateUrl中的那个模板。 controller可想已知,就是我们配套的controller,就是应用于根目录的这个 模板时的controller。
ontherwise 就是当你路径访问错误时,找不到。最后跳到这个默认的 页面。
为此我们可以总结一下几个特点:
1 一个映射配置文件
2 路径出错处理机制
这就是路由的基本意思,我们看看,在原生开发中,采用此种方式,他能解决我们什么问题。
二 它能解决我们什么问题

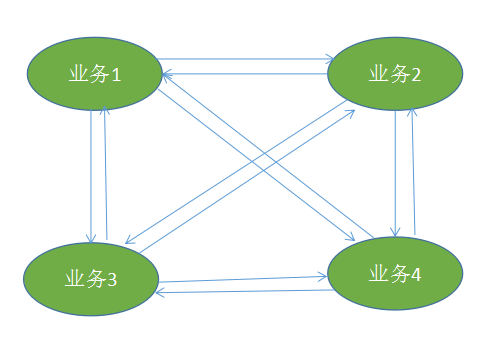

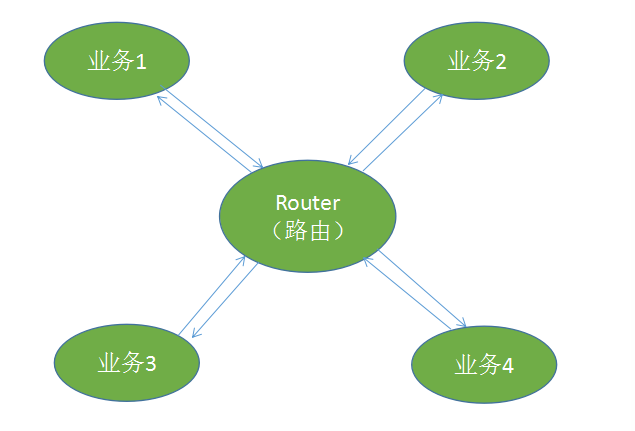

首先我们来比较一下我们以前的结构模式以及与 加入路由机制后的项目结构,实现路由机制,不仅需要一个映射文件,还需要一套路由管理机制,那么采用路由机制,我们的项目架构就跟原来不一样了,如下图:
接下来我们看一下平时我们采用的页面跳转方法:
iOS 下
[self presentViewController:controller animated:YES completion:nil];
[self.navigationController pushViewController:controller animated:YES];
android 下
Intent intent = new Intent(this, A.class); startActivity(intent); startActivityForResult(Intent intent, Int requestCode)
我们看一下它有哪些缺点:
(1)都要在当前页面引入要跳转页面的class 类。这就造成了页面的耦合性很高。
(2)遇到重大bug,不能够及时的修复问题,需要等待更新发版后才能解决。
(3)推送消息,如果入口没有关与页面的引入处理,则不能跳转到指定页面。
引入路由机制后我们能否解决这些问题呢?
试想一下,如果我们通过一个配置文件来映射页面跳转关系,而且通过反射机制来取消头文件的引入问题,是不是我们就可以解决以上那些弊端了呢,比如,我们线上应用出现bug, 导致某个页面一打开,app就跪了,那我们是不是就可以通过更新路由配置文件,把它映射到另一个页面去:一个错误提示文件,或者一个线上H5能实现相同功能的页面。这样的话,原生app也具有了一定的动态更新能力,其实想想还有很多好处,比如项目功能太多原生开发要很长时间,但是领导又急着要上线,那么我们是不是就可以先开发一个网页版的模块,app路由映射到这个web页面,让用户先用着,等我们原生开发完了,然后再改一下映射文件,没升级的依旧用H5的路由,升级的就用原生的路由,如果H5页面我们要废弃了,那我们整体就可以路由到一个升级提升的页面去了。
总结一下路由机制能解决我们哪些问题:
1 避免引入头文件,是页面之间的依赖大大变少了(通过反射动态生成页面实例)。
2 线上出现重大bug,给我们提供了一个及时修补的入口
3 网页和原生切换更方便,更自由。
4 可以跳转任意页面 例如我们常用的推送,要打开指定的页面,以前我们怎么做的,各种启动判断,现在呢,我们只要给发送消息配个路由路径就行了,打开消息,就能够跳转到我们指定的页面。
等等,其它好处自行发掘。
三 如何在项目中实现
说了这么多概念性问题,下面我们就用代码来实现我们的构想, 下面先以IOS平台为例:
我们先看一下demo结构

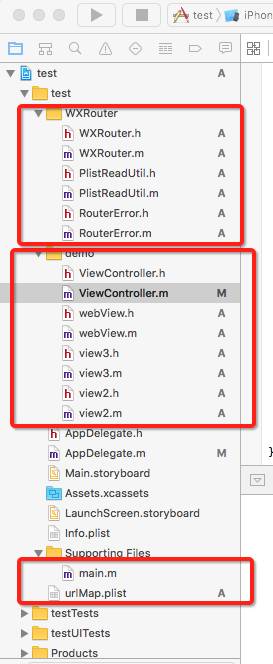

iOS demo结构图.png
说明:WXRouter 路由管理文件
demo 路由使用示例
urlMap.plist 路由配置文件
我们主要讲解一下 WXRouter里面的几个文件,以及ViewController文件,还有urlmap.plist文件,其他请下载示例demo,文末我会给出demo地址。
#import
#import
@interface WXRouter : NSObject
+(id)sharedInstance;
-(UIViewController *)getViewController:(NSString *)stringVCName;
-(UIViewController *)getViewController:(NSString *)stringVCName withParam:(NSDictionary *)paramdic;
@end
#import "WXRouter.h"
#import "webView.h"
#import "RouterError.h"
#import "PlistReadUtil.h"
#define SuppressPerformSelectorLeakWarning(Stuff) \
do {
_Pragma("clang diagnostic push") \
_Pragma("clang diagnostic ignored \"-Warc-performSelector-leaks\"") \
Stuff; \
_Pragma("clang diagnostic pop") \
}
while (0)
@implementation WXRouter
+(id)sharedInstance {
static dispatch_once_t onceToken;
static WXRouter * router;
dispatch_once(&onceToken,^{
router = [[WXRouter alloc] init];
});
return router;
}
-(UIViewController *)controller:(UIViewController *)controller withParam:(NSDictionary *)paramdic andVcname:(NSString *)vcName {
SEL selector = NSSelectorFromString(@"iniViewControllerParam:");
if(![controller respondsToSelector: selector]){ //如果没定义初始化参数方法,直接返回,没必要在往下做设置参数的方法
NSLog(@"目标类:%@未定义:%@方法",controller,@"iniViewControllerParam:");
return controller;
}
if(paramdic == nil) {
//如果参数为空 URLKEY 页面唯一路径标识别
paramdic = [[NSMutableDictionary alloc] init];
[paramdic setValue: vcName forKey:@"URLKEY"];
SuppressPerformSelectorLeakWarning([controller performSelector: selector withObject:paramdic]);
}
else {
[paramdic setValue: vcName forKey:@"URLKEY"];
}
SuppressPerformSelectorLeakWarning( [controller performSelector:selector withObject:paramdic]);
return controller;
}
-(UIViewController *)getViewController:(NSString *)stringVCName {
NSString *viewControllerName = [PlistReadUtil plistValueForKey: stringVCName];
Class class = NSClassFromString(viewControllerName);
UIViewController *controller = [[class alloc] init];
if(controller == nil){ //此处可以跳转到一个错误提示页面
NSLog(@"未定义此类:%@",viewControllerName);
return nil;
}
return controller;
}
-(UIViewController *)getViewController:(NSString *)stringVCName withParam:(NSDictionary *)paramdic {
UIViewController *controller = [self getViewController: stringVCName];
if(controller != nil){
controller = [self controller: controller withParam:paramdic andVcname:stringVCName];
}
else {
//异常处理 可以跳转指定的错误页面
controller = [[RouterError sharedInstance] getErrorController];
}
return controller;
}
@end
说明:通过反射机制根据传入的string来获取 viewcontroller实例,实现了两个方法,一个是不需要传入参数的,一个是需要传入参数的,当跳转到第二个页面需要传值 就使用第二个带参数的方法,所传的值通过NSDictionary来进行封装,跳转后的页面通过实现
-(void)iniViewControllerParam:(NSDictionary *)dic 方法来获取传过来的参数。
#import
@interface PlistReadUtil : NSObject
@property(nonatomic,strong) NSMutableDictionary *plistdata;
+(id)sharedInstanceWithFileName:(NSString *)plistfileName;
+(NSString *)plistValueForKey:(NSString *)key;
@end
#import "PlistReadUtil.h"
@implementation PlistReadUtil
+(id)sharedInstanceWithFileName:(NSString *)plistfileName {
static dispatch_once_t onceToken;
static PlistReadUtil * plistUtil;
dispatch_once(&onceToken,^{
plistUtil = [[PlistReadUtil alloc] init];
NSString *plistPath = [[NSBundle mainBundle] pathForResource: plistfileName ofType:@"plist"];
plistUtil.plistdata = [[NSMutableDictionary alloc] initWithContentsOfFile: plistPath];
});
return plistUtil;
}
+(NSString *)plistValueForKey:(NSString *)key {
PlistReadUtil *plist = [PlistReadUtil sharedInstanceWithFileName: @"urlMap"];
return [plist.plistdata objectForKey: key];
}
@end
说明:路由配置文件读取工具类,我这里读取的是plist 文件,我这里也可以读取json,或则访问网络获取后台服务器上的路由配置文件,这个根据我们业务需求的不同,可以添加不同的读取方法。
#import <Foundation/Foundation.h>
#import <UIKit/UIKit.h>
@interface RouterError : NSObject
+(id)sharedInstance;
-(UIViewController *)getErrorController;
@end
#import "RouterError.h"
#import "WXRouter.h"
@implementation RouterError
+(id)sharedInstance {
static dispatch_once_t onceToken;
static RouterError * routerError;
dispatch_once(&onceToken,^{
routerError = [[RouterError alloc] init];
});
return routerError;
}
#pragma mark 自定义错误页面 此页面一定确保能够找到,否则会进入死循环
-(UIViewController *)getErrorController {
NSDictionary *diction = [[NSMutableDictionary alloc] init];
[diction setValue: @"https://themeforest.net/item/octopus-error-template/2562783" forKey:@"url"];
UIViewController *errorController = [[WXRouter sharedInstance] getViewController: @"MSG003" withParam:diction];
return errorController;
}
@end
说明:在读取配置文件时如果没有读到相应的路径,或者未定义相应的class,我们可以在这里处理,我这边处理的是如果出现错误,就返回一个webview页面,我们可以在项目里写一个统一的错误处理webview页面,其实每个页面默认都添加了一个参数[paramdic setValue:vcName forKey:@"URLKEY"]; 就是这个URLKEY,这个key标示配置文件中每个跳转动作的key,这个key是唯一的,我们可以根据不同的URLKEY然后通过后台统一的一个接口来判断跳转到不同的错误处理H5页面。
#import "ViewController.h"
#import "view2.h"
#import "WXRouter.h"
#import "PlistReadUtil.h"
@interface ViewController ()
@end
@implementation ViewController
-(void)viewDidLoad {
[super viewDidLoad];
UILabel *lable = [[UILabel alloc] initWithFrame: CGRectMake(0, 0, 100, 50)];
lable.textColor = [UIColor blueColor];
lable.text =@"hello word";
[self.view addSubview: lable];
UIButton *button = [[UIButton alloc] initWithFrame: CGRectMake(0, 50, 200, 50)];
[button setTitle: @"访问view1" forState:UIControlStateNormal];
[button setTitleColor: [UIColor blackColor] forState:UIControlStateNormal];
button.tag = 1;
[button addTarget: self action:@selector(back:) forControlEvents:UIControlEventTouchUpInside];
[self.view addSubview: button];
UIButton *button2 = [[UIButton alloc] initWithFrame: CGRectMake(0, 110, 200, 50)];
[button2 setTitle: @"访问view3" forState:UIControlStateNormal];
[button2 setTitleColor: [UIColor blackColor] forState:UIControlStateNormal];
button2.tag = 2;
[button2 addTarget: self action:@selector(back:) forControlEvents:UIControlEventTouchUpInside];
[self.view addSubview: button2];
UIButton *butto3 = [[UIButton alloc] initWithFrame: CGRectMake(0, 170, 200, 50)];
[butto3 setTitle: @"访问webview" forState:UIControlStateNormal];
[butto3 setTitleColor: [UIColor blackColor] forState:UIControlStateNormal];
butto3.tag = 3;
[butto3 addTarget: self action:@selector(back:) forControlEvents:UIControlEventTouchUpInside];
[self.view addSubview: butto3];
UIButton *button4 = [[UIButton alloc] initWithFrame: CGRectMake(0, 230, 200, 50)];
[button4 setTitle: @"访问wei定义的页面" forState:UIControlStateNormal];
[button4 setTitleColor: [UIColor blackColor] forState:UIControlStateNormal];
button4.tag = 4;
[button4 addTarget: self action:@selector(back:) forControlEvents:UIControlEventTouchUpInside];
[self.view addSubview: button4];
}
-(void)back:(UIButton *)btn {
switch (btn.tag) {
case 1: {
NSMutableDictionary *dic = [[NSMutableDictionary alloc] init];
[dic setValue: @"nihao shijie" forKey:@"title"];
UIViewController *controller = [[WXRouter sharedInstance] getViewController: @"MSG001" withParam:dic];
[self presentViewController: controller animated:YES completion:nil];
}
break;
case 2: {
NSMutableDictionary *dic = [[NSMutableDictionary alloc] init];
[dic setValue: @"nihao shijie" forKey:@"title"];
UIViewController *controller = [[WXRouter sharedInstance] getViewController: @"MSG002" withParam:dic];
[self presentViewController: controller animated:YES completion:nil];
}
break;
case 3: {
NSMutableDictionary *dic = [[NSMutableDictionary alloc] init];
[dic setValue: @"https://www.baidu.com" forKey:@"url"];
UIViewController *controller = [[WXRouter sharedInstance] getViewController: @"MSG003" withParam:dic];
[self presentViewController: controller animated:YES completion:nil];
}
break;
case 4: {
UIViewController *controller = [[WXRouter sharedInstance] getViewController: @"MSG005" withParam:nil];
[self presentViewController: controller animated:YES completion:nil];
}
default:
break;
}
}
-(void)didReceiveMemoryWarning {
[super didReceiveMemoryWarning];
// Dispose of any resources that can be recreated.
}
@end
说明:这个是使用示例,为了获取最大的灵活性,这里我并没有把跳转动作presentViewcontroller,pushViewController,以及参数的组装封装在路由管理类里。看过很多大神写的路由库,有些也通过url schema的方式。类似于:xml:id/123/name/xu,这样的路径方式,但是个人感觉,如果界面之间传递图片对象,或者传嵌套的类对象,就有点麻烦了。因为怕麻烦,所以就先写个简单的吧。
#import "view3.h"
@interface view3 ()
@end
@implementation view3
- (void)viewDidLoad {
[super viewDidLoad];
UILabel *lable = [[UILabel alloc] initWithFrame: CGRectMake(0, 0, 100, 50)];
lable.textColor = [UIColor blueColor];
lable.text =@"我是view3";
[self.view addSubview: lable];
UIButton *button = [[UIButton alloc] initWithFrame: CGRectMake(200, 200, 200, 200)];
[button setTitle: @"back" forState:UIControlStateNormal];
[button setTitleColor: [UIColor blackColor] forState:UIControlStateNormal];
[button addTarget: self action:@selector(back) forControlEvents:UIControlEventTouchUpInside];
[self.view addSubview: button];
}
-(void) back {
[self dismissViewControllerAnimated: YES completion:nil];
}
-(void)iniViewControllerParam:(NSDictionary *)dic {
self.title = [dic objectForKey: @"title"];
}
说明:这个是要跳转的页面我们可以通过iniViewControllerParam:(NSDictionary *)dic方法获取上一个界面传过来的参数。

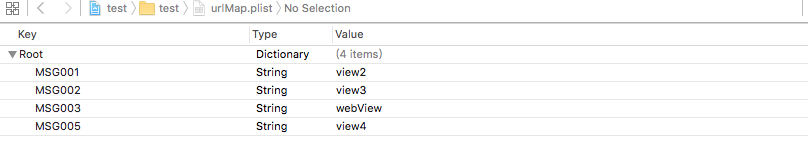

urlMap.plist
说明:路由配置文件,key:value的形式,页面里的每个跳转动作都会对应一个唯一的key,这里如果两个页面都跳转到同一个页面,就会产生不同的key 对应相同的value,感觉是有点冗余了,如果有更好的优化,我会更新下文章的,这里的配置文件我们可以怎么玩,由于我在android的这块的描述已经很详细了,所以这里就不再赘述。只是android的配置有点坑,类前需要加上包名,这点就没有iOS方便灵活了,至此iOS示例我就讲完了。
总结:代码是简陋的,只是简单的实现了自己的构想,还有很多值得细细琢磨的地方,关键是架构思路,通过中间路由根据下发的路由配置文件来动态跳转页面,解决原生开发的遇到的一些问题,不同的项目有不同的业务逻辑,这种思路有什么缺陷,或者解决不了什么问题,大家一起讨论分享。基于这种思路搭建架子的话,对于将来的组件化开发,应该也会很方便转换吧。
demo地址
android:https://github.com/lerpo/WXAndroidRouter.git
iOS :https://github.com/lerpo/WXiOSRouter.git
